Self-Supervised Contrastive Representation Learning for Time Series

Ⅰ. Introduction

Time series classification (TSC) is a critical task in various domains such as healthcare, finance, industrial monitoring, and human activity recognition[1]. Traditionally, supervised learning approaches have been widely used in TSC, requiring substantial volumes of accurately labeled data to achieve high performance. However, acquiring extensive labeled datasets is often expensive, time-consuming, and sometimes impractical due to privacy constraints or the complexity of labeling processes[2].

In In recent years, self-supervised learning has emerged as a promising strategy to mitigate these challenges by leveraging unlabeled data to learn meaningful representations[3][4]. Among self-supervised methods, contrastive learning has gained notable attention due to its ability to extract robust, discriminative features without reliance on explicit annotations[5]. Contrastive learning operates by pulling representations of similar or augmented instances closer together while simultaneously pushing representations of dissimilar instances apart in the embedding space. Despite the extensive research on contrastive learning in computer vision and natural language processing, its application to time series data remains relatively under-explored[6]-[8]. Time series data pose unique challenges, including temporal dependencies, varying sequence lengths, and noise interference, which complicate the straightforward adaptation of methods developed for other data modalities. To address these issues, recent studies have focused on designing specialized contrastive frameworks tailored for time series classification tasks [9]-[11]. These approaches typically incorporate domain-specific data augmentation techniques, novel loss functions, and effective encoding schemes to enhance representation learning. By doing so, they have demonstrated the potential of self-supervised contrastive methods to match or even surpass supervised benchmarks, particularly in scenarios with limited labeled data. For example, Dai et al. and Kim et al. proposed contrastive learning frameworks for EEG and biosignal classification, respectively—leveraging brain-area-specific features or class-subject dual labels to enhance generalizability and achieve state-of-the-art performance[12][13]. However, these methods are designed for specific application scenarios and lack generalizability to other forms of time series data.

To address the aforementioned limitations, we propose a time-series information contrastive learning (TICL) framework. This framework employs two distinct data augmentation strategies to enhance the model’s representational capability by generating two different yet semantically related views from the original time series, thereby facilitating the learning of robust and discriminative representations. Subsequently, we introduce an auxiliary latent information constraint (LIC) mechanism to enhance the diversity of latent representations and eliminate redundant information among samples. Specifically, LIC encourages the uniqueness of each sample representation, ultimately contributing to improved representation clarity and cross-domain adaptability. Extensive experiments conducted on benchmark datasets validate the proposed method's performance, highlighting its capability to achieve high accuracy with significantly reduced labeling requirements. Our approach thus provides a viable pathway towards efficient and scalable time series classification in diverse real-world applications.

Ⅱ. Related Wokrs

Ⅲ. Methods

We proposed a TICL framework, with its detailed architecture illustrated in Figure 1. Initially, two distinct data augmentation strategies are applied to the unlabeled time-series signals to generate a pair of different yet correlated views.

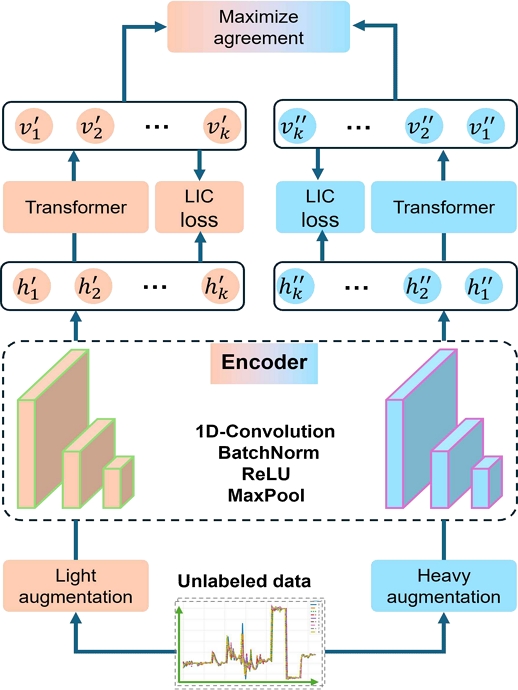

Fig. 1.

Detailed architecture of TICL model

To further enhance representation diversity and suppress redundant information across samples, a LIC module is introduced. Finally, the model is optimized by maximizing the similarity between positive pairs (augmented from the same instance) while minimizing the similarity between negative pairs, thereby enabling the encoder to learn highly discriminative and generalizable representations.

3.2 Details of TICL

For any input sample x, the model initially encodes the raw signal into a high-dimensional representation h, capturing preliminary feature information. This transformation is achieved via an embedding module composed of three one-dimensional convolutional blocks, which project the low-dimensional input into a transferable latent motion space, effectively extracting local patterns while retaining temporal characteristics. The resulting embedding h is subsequently fed into a Transformer-based module (Figure. 2), which produces semantically enriched view-level features v. These features are employed for similarity-based contrastive learning across augmented views. While maximizing the similarity between positive pairs is critical during similarity loss computation, we observe that excessive alignment of latent features may result in redundancy, thereby degrading the model’s capacity to discriminate between different samples. To mitigate this, we introduce a LIC. Specifically, we incorporate a regularization term derived from information divergence into the original similarity loss to penalize over-similar latent encodings across samples. Let z_i and $$ z_i^{\prime }$$ denote the projected latent vectors corresponding to the embedded representation h_i and its associated view v_i, where B represents the batch size and θ is a tunable hyperparameter.

$\[ \begin{array}{c}LIC=\hfill \\ \frac{1}{B \left(B-1\right)}\times \log \left[\sum _{i=1,j=1\dots B,j\ne i}^B\sum e^{\theta {\left|z_i-z_j\right|}^2}\right]\hfill \end{array} \]$

(3)

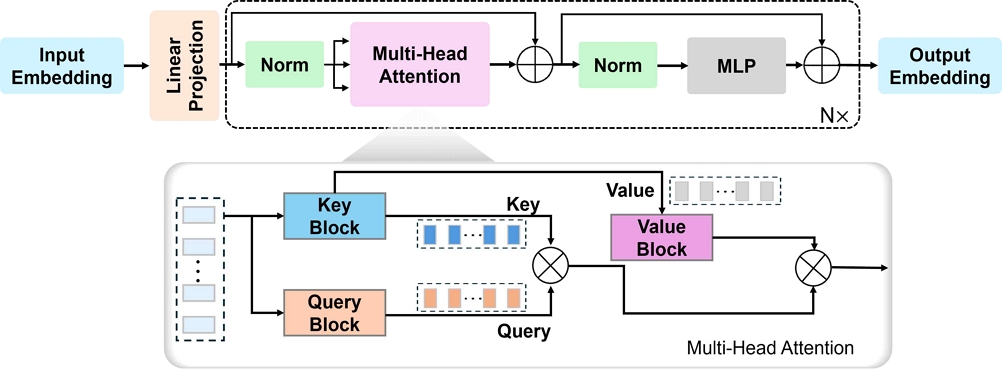

Fig. 2.

Detailed architecture of transformer

The light and heavy augmentations correspond to LIC_light and LIC_heavy, respectively. The self-supervised similarity comparison loss function is LIC_self, as defined in Formula (4):

$\[ L_{self}=-\frac{1}{N}\sum _{i=1}^N\log \frac{\exp \left(s\left(v_i,v_i^{+}\right)/\tau \right)}{\sum _{j=1}^{2N}\exp \left(s\left(v_i,v_j\right)/\tau \right)} \]$

(4)

Where $$ s\left(\alpha ,\beta \right)=\left({\alpha }^T\beta \right)/‖\alpha ‖ ‖\beta ‖$$ denotes the cosine similarity between α and β. τ symbolizes a temperature parameter. The TICL loss function can be formulated as shown in Formula (5):

$\[ L_{TICL}=L_{self}+\lambda \left(LI{C}_{light}+LI{C}_{heavy}\right) \]$

(5)

Where λ is is a hyperparameter used to balance the weight between contrastive learning loss and LIC.

Ⅳ. Experiments

We conduct experiments on three publiclyavailable time series datasets (Table 1). All datasets were randomly divided into three subsets: 80% for training, 10% for validation, and 10% for testing. To better reflect real-world scenarios, the training set was first used for self-supervised pretraining, after which 20% of the training data was randomly selected to fine-tune the pre-trained model. (a) The epilepsy seizure detection dataset contains EEG recordings from 500 subjects, with each recording capturing 23.6 seconds of brain activity per subject. (b) Human Activity Recognition (HAR) is a widely used benchmark dataset for time series classification. It consists of 10,299 multivariate time series samples, each with 9 sensor channels and a fixed length of 128 time steps. The data were collected from 30 different individuals using accelerometers and gyroscopes embedded in a smartphone, sampled at 50 Hz. (c) The Sleep-EDF dataset was used for sleep stage classification. We utilized daily life recordings from four subjects, which were collected using a modified cassette recorder.

Table 1.

Description of dataset used in our experiments

Ⅴ. Results

5.1 Comparison with baseline approaches

To evaluate the effectiveness of the proposed TICL framework, we used two metrics: accuracy and macro-averaged F1 score (MF1) to assess model performance.

We also compared TICL with several baseline methods: (1) SSL-ECG[10]; (2) CPC[20]; (3) SimCLR[14]; and (4) TS-TCC[21]. After fine-tuning the model with 20% of the labeled data, the results are summarized in Table 2. Overall, our proposed TICL framework outperformed all four state-of-the-art methods, demonstrating its strong representational learning capability and more stable performance on downstream tasks. is worth noting that contrastive methods such as CPC, SimCLR, and our proposed TICL generally outperform prompt-based approaches like SSL-ECG, highlighting the effectiveness of augmentation-based contrastive learning in capturing invariant and discriminative features.

Table 2.

Comparison between our proposed models against baseline

5.2 Ablation study

We evaluated the effectiveness of each component in the proposed TICL model by conducting a series of ablation studies. Specifically, we constructed several model variants for comparison. First, we trained a baseline model without using the Transformer architecture, where the encoder output was directly projected to compute similarity between samples—this variant is referred to as TICLa). Second, we removed the LIC module, resulting in the variant denoted as TICLb). Additionally, we investigated the impact of data augmentation strategies by generating both views using either only light augmentation or only heavy augmentation. Specifically, the LIC module is designed to reduce feature redundancy by projecting input representations into a compact latent space, where only the most discriminative and task-relevant information is preserved. This compression is achieved through a contrastive learning objective that encourages representations of augmented views of the same sample to remain close, while pushing apart unrelated samples. By minimizing mutual information between different views in a controlled manner, the LIC module suppresses modality- or dataset-specific noise and spurious correlations. This redundancy reduction is particularly beneficial for cross-dataset generalization, as it helps the model focus on invariant features that are consistently informative across domains. In other words, the LIC module acts as a regularizer that encourages the network to discard superficial patterns that may overfit to a particular dataset's distribution, and instead retain robust features that generalize better to unseen data.

The results are summarized in Table 3. Clearly, the incorporation of the Transformer module, along with the redundancy-reducing LIC strategy, significantly improved the model's cross-dataset generalization and overall accuracy. Furthermore, our analysis of augmentation strategies revealed that using identical augmentation types for both views (either only lightor only heavy) resulted in suboptimal performance. In contrast, the best results were achieved when two distinct augmentation methods—light and heavy—were used to generate diverse but semantically related views. The “identical” setting refers to using the same view of a sample as both the anchor and the positive pair in the contrastive learning process. This effectively removes the augmentation-induced variability that is critical for learning invariant and discriminative features. Without meaningful transformations, the model is not challenged to align representations of semantically equivalent but appearance-varied inputs, which weakens its ability to generalize across diverse conditions. From a theoretical perspective, contrastive learning benefits from augmentations that introduce controlled variability while preserving semantic consistency. These augmentations help the model learn to ignore superficial differences and focus on core signal patterns. The absence of such variability in the “identical” strategy leads to trivial representations and limits the model’s ability to capture invariant features, resulting in poorer performance.

Table 3.

Ablation experiments of effect of different components in TICL

Ⅵ. Conclusion

In this work, we propose a TICL framework for self-supervised representation learning from unlabeled time series data. Specifically, the framework first constructs positive sample pairs for each input by applying two distinct data augmentation strategies. A Transformer-based encoder is then employed to extract temporal features, while the LIC module is integrated to eliminate redundant information across samples, thereby facilitating the learning of robust and discriminative representations. Experimental results demonstrate that the representations learned via TICL when fine-tuned with a small number of labeled samples, achieve high accuracy across various domains and tasks. For instance, TICL achieves an average accuracy improvement of 2% over standard baselines on three widely-used benchmark datasets.

Acknowledgments

This research was financially supported by Kwangwoon University
