Shadow Removal and Image Segmentation for Grayscale Hand Gesture Images

Ⅰ. Introduction

Hand gestures convey diverse meanings shaped by cultural and situational contexts, serving as key modalities in human communication, affective expression, and command transmission. Vision-based gesture recognition technologies are integral to contactless interfaces, necessitating precise extraction of finger position and morphology [1]. Binarization, a fundamental preprocessing step, reduces image complexity and enhances the robustness of hand shape recognition by isolating hand regions from the background [2].

However, shadows present a significant challenge in image processing tasks—including object recognition, feature extraction, and scene interpretation—by degrading binarization accuracy. In single-frame imagery, shadows obscure object boundaries, distort contours, and diminish brightness, leading to misclassification or omission of hand regions. Additionally, shadowed areas often exhibit color and texture similarities with the background, causing segmentation failures such as object-shadow merging or boundary misidentification. These limitations, documented in prior studies [2][3], underscore the need for effective shadow detection and removal to improve binarization fidelity.

Ⅱ. Background

2.1 Understanding shadows

A shadow comprises distinct regions based on light obstruction: the umbra, where the light source is fully occluded, yields a sharp and high-contrast shadow; the penumbra, formed by partial occlusion, produces softer shadows with blurred edges and reduced luminance, complicating boundary detection in image analysis. The antumbra, occurring when the occluding object is smaller than the light source, is excluded from this study as it is not relevant to the current context (see Fig. 1).

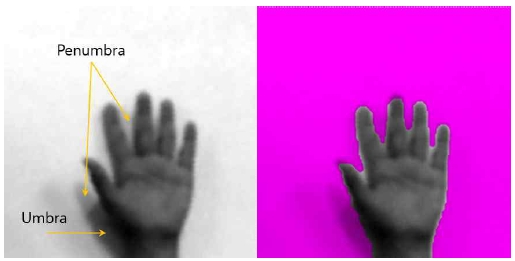

Fig. 1.

Type of shadows and ground-truth label

2.2 Related research

Brightness-based thresholding is the most widely adopted method for shadow detection and removal, exploiting the lower pixel intensity of shadow regions relative to their surroundings [3]. Common implementations utilize 1D histograms, with enhancements via 2D histograms [4] and adaptive thresholding. While suitable for real-time applications, this approach struggles with hand images where umbra regions overlap object contours (see Fig. 1).

Illumination modeling, a physics-based technique, estimates lighting conditions to isolate shadows. The observed intensity, 𝐼, is modeled as the product of reflectance, 𝑅, and illumination, 𝐿, and transformed logarithmically into a linear additive form. Reflectance, 𝑅, invariant to lighting, is then extracted for shadow detection [5]. Despite its theoretical rigor, this method requires complex estimation and often lacks robustness.

Geometric approaches, based on object-shadow projection rules, are limited by their dependence on object-specific geometry and are unsuitable for hand gesture recognition [6]. Texture-based segmentation has also been explored [7], but performs poorly when texture is weak or ambiguous.

Recent advances in deep learning and machine learning [8] offer promising alternatives, yet most models are optimized for high-resolution color images with three channels. In grayscale contexts, its performance degrades significantly. For example, [9] applies SLIC (Simple Linear Iterative Clustering), a superpixel algorithm based on K-means, which computes color and spatial distances in Lab space—unsuitable for single-channel grayscale images. Comparative results for each method are shown in Fig. 2.

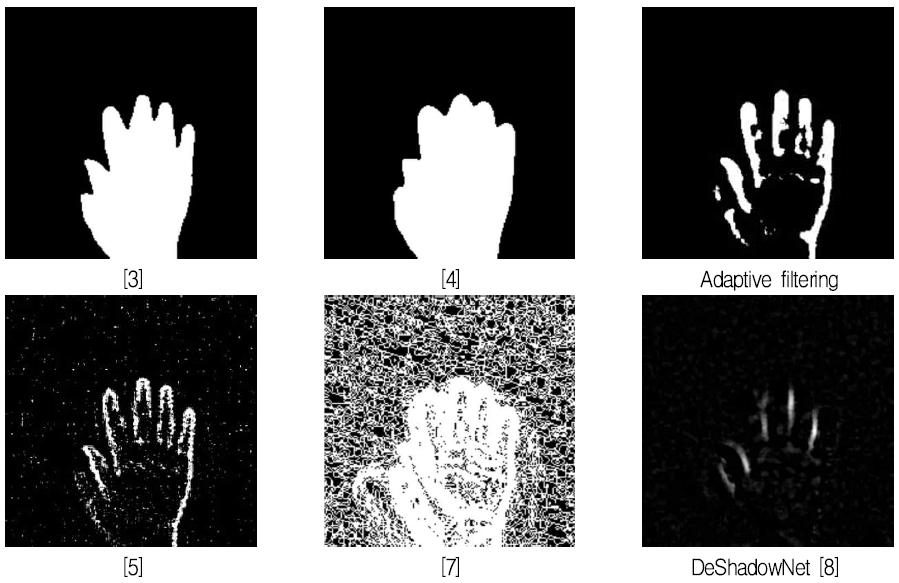

Fig. 2.

Related research results

This paper proposes a novel methodology that addresses the shortcomings of previous studies for grayscale hand gesture images. Instead of relying on inaccurate illumination modeling, the proposed method estimates the direction of the light source to eliminate its influence. In place of the SLIC algorithm, which is unsuitable for grayscale images, Mean Shift clustering is introduced for compatibility with single-channel data. By incorporating the geometric characteristics of the hand and leveraging the observation that contour regions within shadows exhibit minimum brightness, the method selectively identifies shadow and non-shadow Mean Shift clusters.

Ⅲ. Proposed Method

3.2 Mean shift

Mean Shift is an unsupervised clustering algorithm that distinguishes itself from K-Means by not requiring a predefined number of clusters. The algorithm begins by scattering multiple data points across the image and performing kernel density estimation around each point. Each point is iteratively shifted toward regions of higher density to identify cluster centers.

A Gaussian kernel is typically employed, with its size determined by a bandwidth parameter; a larger bandwidth results in fewer clusters due to broader kernel coverage. The areas where data points converge are classified into clusters, and each cluster is assigned the average brightness value of the pixels it contains.

Mean Shift is widely used in image segmentation and offers several advantages. It groups image pixels into superpixels, enhancing computational efficiency, and maintains spatial consistency and object contours at the cluster level. Furthermore, it requires only a few parameters, making parameter tuning straightforward. In the present task, which involves grayscale images, clustering can be performed solely based on brightness values without relying on color channel information (see Fig. 3(b))

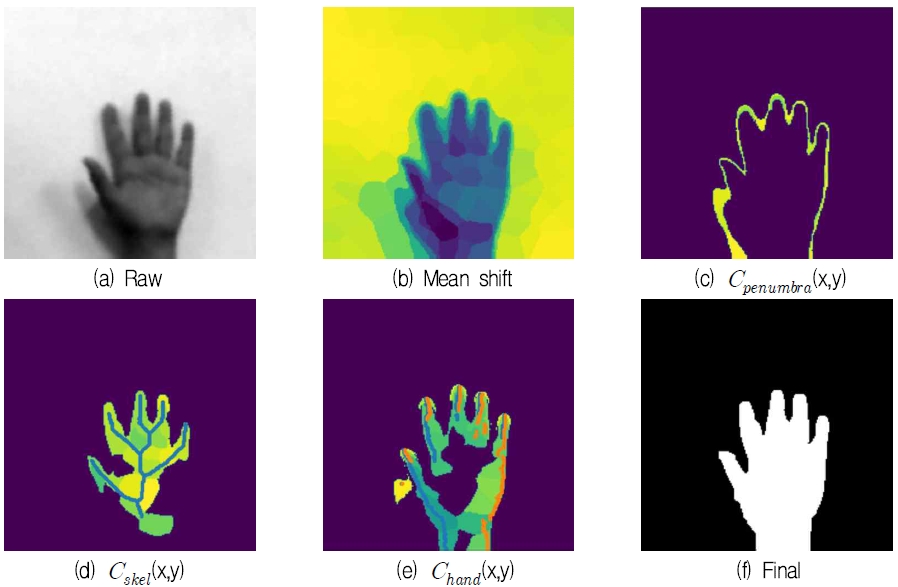

Fig. 3.

Process

3.5 Hand region detection

In the case of the umbra region, shadows tend to be darker and are often coupled with the curvature of the hand, making boundary detection particularly challenging. As shown in Fig. 3(b), the brightness of the umbra region is similar to that of clusters within the hand, making pixel-level operations insufficient for distinguishing them in grayscale images. To overcome this limitation, we propose a method that extracts local minima near the contours. Specifically, the brightness gradient along the y-axis, denoted as ΔI(x,y), is computed from the intensity I(x, y), and points where ΔI(x, y) = 0 are identified to locate local extrema closest to the contour. Fig. 4 illustrates the brightness values and their derivatives at y = 180. Compared to conventional methods that detect contours at gradient extrema, our approach reveals that actual boundary values tend to appear further inward, highlighting the limitations of existing techniques. Clusters intersecting with these extracted local extrema, denoted as C_hand(x,y), are selected, and their contours are defined as the boundary (see Fig. 3(e)).

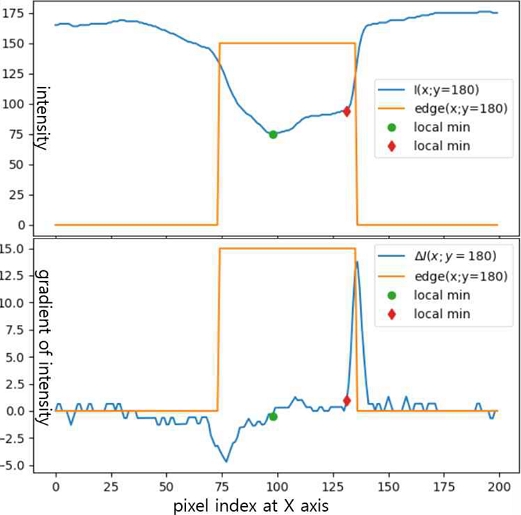

Fig. 4.

Local minimum detection

Ⅳ. Performace Evaluation

For performance evaluation, we utilize the dataset used in previous studies [2][3]. It consists of 2,000 grayscale images of Chinese numeral hand gestures, captured from 17 subjects across 10 gesture classes, with 200 images per class. The images were recorded using a webcam at a resolution of 200×200 pixels, exhibiting variations in hand size, orientation, lighting conditions, and wrist exposure. From this dataset, 134 images that failed binarization due to shadows and 126 shadow-free images were selected and categorized into a shadowed group and a clean group, respectively. This categorization enables assessment of the impact of the shadow removal methodology on images unaffected by shadows. For performance metrics, we employ pixel-wise accuracy, sensitivity, and specificity. Sensitivity reflects the accuracy of hand region detection, while specificity indicates the accuracy of shadow region detection. To compute these metrics, pixel-wise labeling was manually performed for each image.

In the quantitative performance analysis shown in Fig. 5, we compare the accuracy, sensitivity, and specificity of the proposed method with those of the 1D Otsu method [3], the 2D Otsu method [4], and the result from [3] with C_penumbra(x,y) excluded. Methods [5], [7], and [8] are excluded due to their failure to delineate a closed contour around the hand region. As shown in Fig. 5, the upper row presents results for the shadowed group, while the lower row corresponds to the clean group. The most notable variation occurs in sensitivity: the proposed method exhibits an 8.3% decrease compared to [3] and a 5.15% decrease relative to the penumbra-removed baseline. This reduction is primarily attributed to two factors. First, as illustrated in Fig. 1, the ground truth labels slightly exceed the actual hand boundaries, introducing teacher noise. This issue is exacerbated in shadow-contaminated images, where manual labeling becomes visually ambiguous. Second, the proposed method tends to undersegment the hand region, resulting in a smaller detected area than the ground truth. To account for this, a clean group test is included in the analysis.

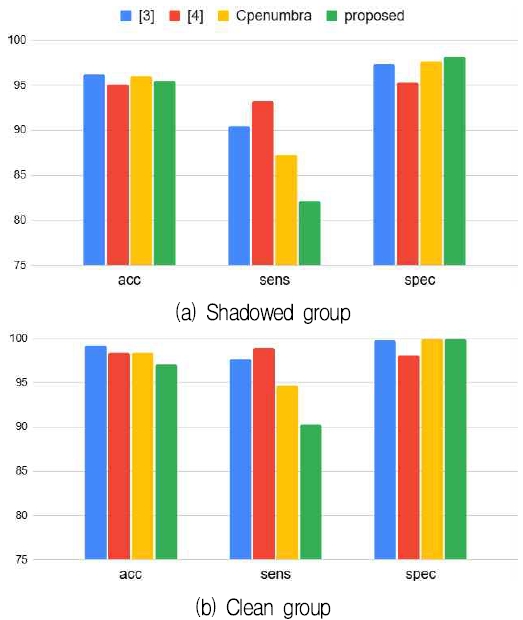

Fig. 5.

Quantitative performance evaluation

In terms of specificity, the proposed method improves by 0.88% over [3] and 2.89% over [4] in the shadowed group, while yielding comparable results to [3] in the clean group—closely aligning with ground truth. These findings suggest that the proposed method effectively suppresses shadows in contaminated images, while maintaining binarization integrity in clean conditions. The modest gain in specificity is largely due to the low proportion of shadow pixels in the overall image. Furthermore, the method employs Mean Shift clustering for shadow removal, functioning as a low-pass filter. Consequently, performance is influenced by the bandwidth parameter and the intersection ratio between hand contours and outer clusters. In this study, the bandwidth is set to 0.005 and the intersection ratio to 15%.

Significant performance improvements are more evident in qualitative comparisons than in quantitative results. We compared outcomes across 260 cases, with a subset illustrated in Fig. 6. Fig. 6(a)–(d) represent samples from the shadowed group, while (e) and (f) show examples from the clean group. The results of the proposed in Fig. 6 reveal that the lower sensitivity observed in the quantitative analysis is mainly due to rough boundaries caused by cluster-based segmentation and the tendency of the proposed method to produce slightly contracted hand regions compared to the ground truth. However, these characteristics do not critically hinder successful shadow removal. Through qualitative analysis, we confirm that even small differences in quantitative metrics are meaningful and should not be overlooked.

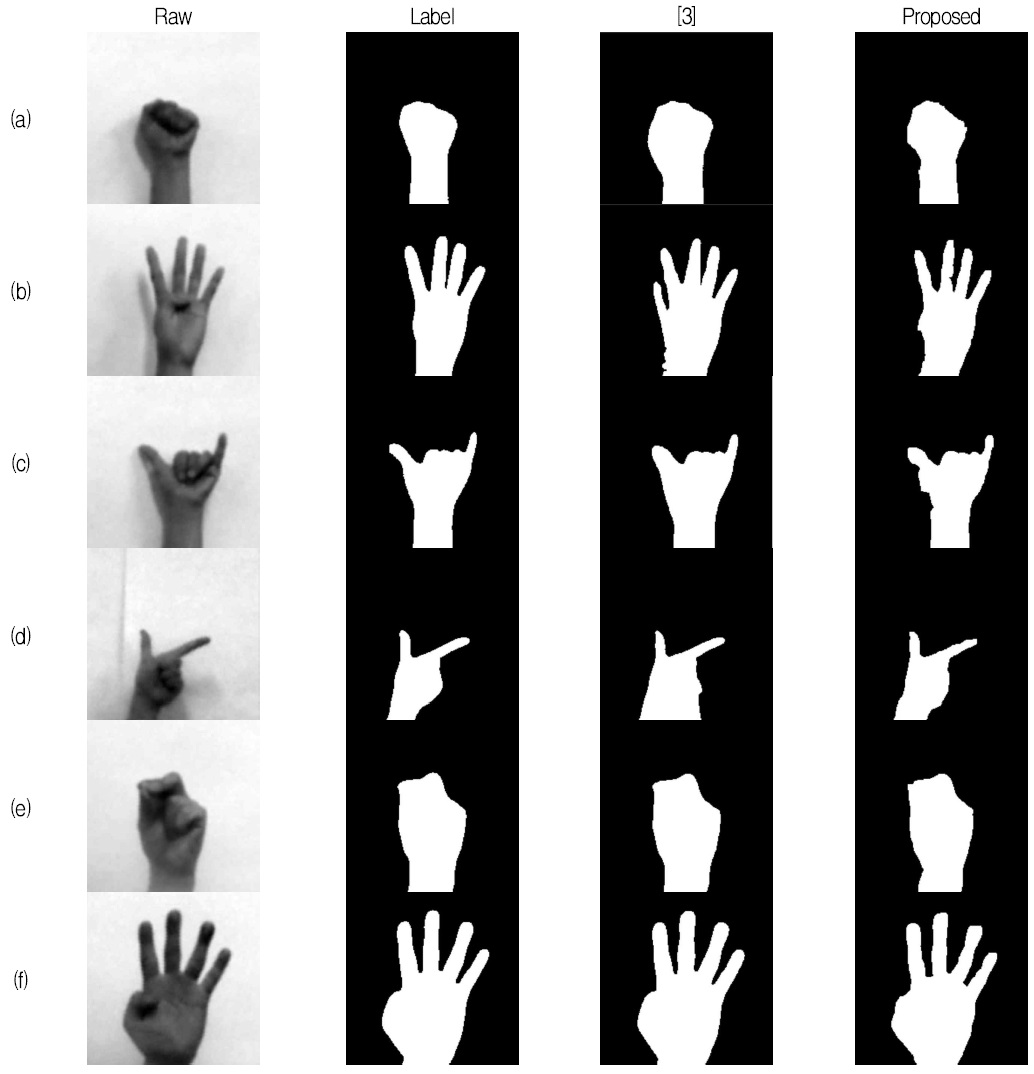

Fig. 6.

Qualitative performance evaluation

Ⅴ. Conclusion

This study addresses the critical challenge of shadow detection and removal in low-quality grayscale hand gesture images, which is a task that significantly impacts the accuracy of image segmentation. While numerous algorithms have been developed for color image processing, their effectiveness in grayscale contexts remains limited due to the absence of chromatic information and the reliance solely on brightness values. Factors such as varying illumination, gesture-induced brightness fluctuations, and the natural curvature of the hand further complicate shadow removal in grayscale imagery.

To overcome these limitations, we propose a novel methodology that transforms pixel-level data into cluster-level representations using the Mean Shift. Clusters corresponding to the hand region are identified based on skeletal structure and local brightness minima near contour boundaries. Penumbra are subsequently removed through contour-based analysis, enabling robust binarization. Although the proposed method tends to slightly contract the outer boundary of the palm region during the removal of umbra and penumbra, it achieves satisfactory performance in both shadow detection and removal. Moreover, the method demonstrates consistent applicability to shadow-free images without compromising segmentation quality.

It is important to note that the performance of the proposed approach is sensitive to two key parameters: the bandwidth of the Mean Shift algorithm and the intersection ratio between contours and peripheral clusters used for penumbra detection. Future research will focus on systematically optimizing these parameters to further enhance the robustness and generalizability of the method.
